4.  The screw eye in the figure at the left is subjected to two forces F1 and F2.  Determine the magnitude and direction of the resultant force.


Solution:

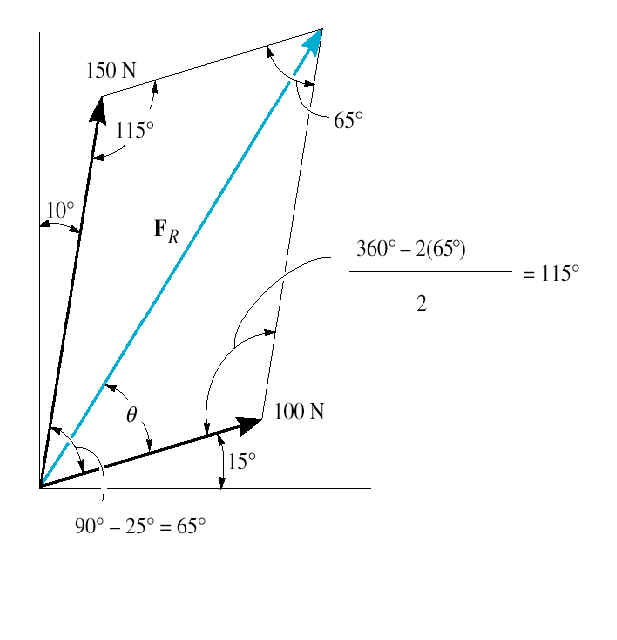

Parallelogram Law:


Calculate angles:

Angle COA = 900 -150-100 = 65

Angle OAB = 1800 -650= 115

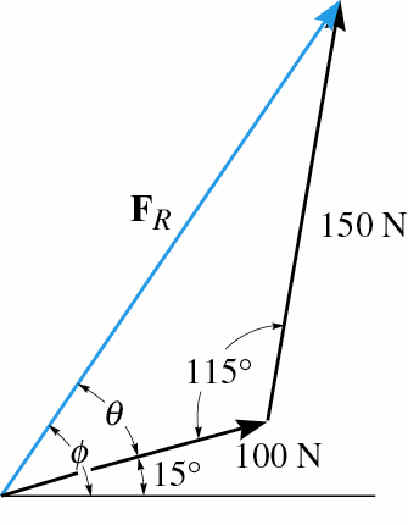

Triangular construction:


Find FR from law of cosines and q from law of sines.
Angle f = q + 150
