Test

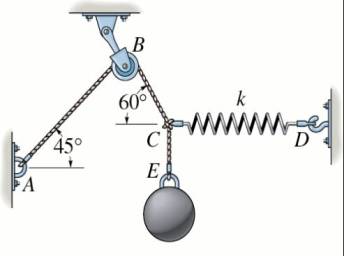

1. The sphere has a mass of 6 kg and is supported as shown. Draw a Free-Body Diagram (FBD) of the sphere, cord CE, and the knot at C.



Solution

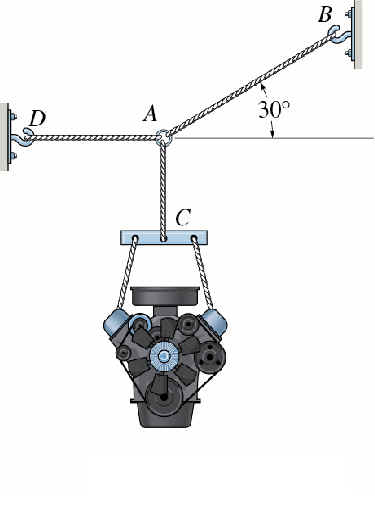

2. If the weight of the assembly at C is 2.452 KN,

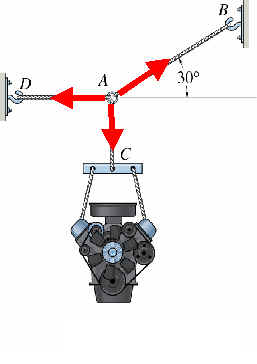

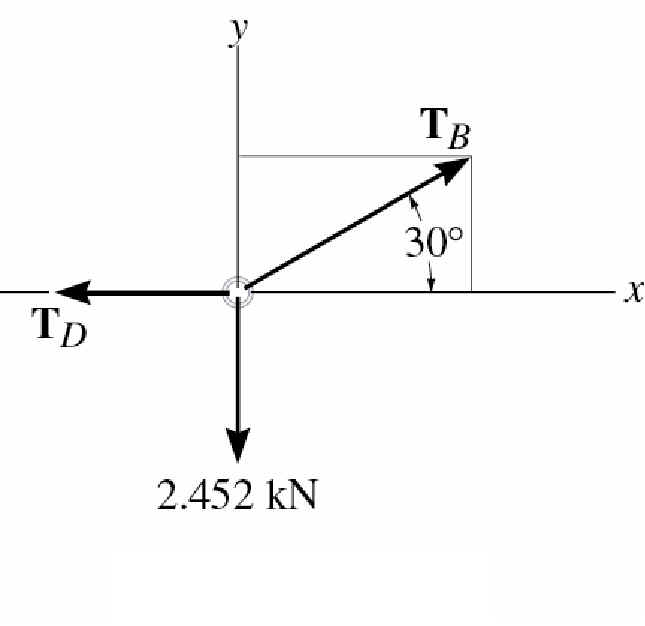

Which one is the FBD of the knot at A (click on each image to see the larger size):


a                b              both a and b

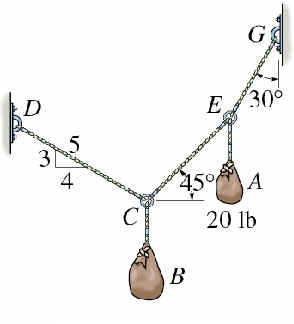

3. Draw the FBD of the knots at C and E and also cord CE.


Solution
